Truck Concrete Boom Pump 46/42/5/125
|
Concrete boom pump 46/42/5/125 MS 2100/9/5 |
|
|
Weight of machine |
27.0 t |
|

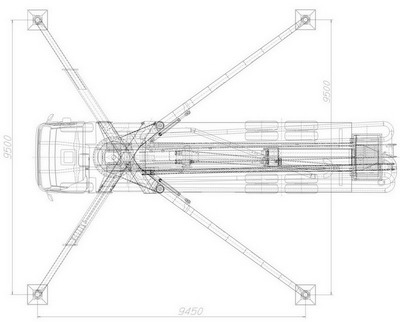

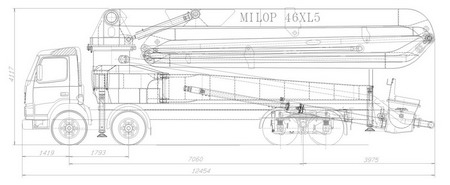

Overall length of machine |
12 460 mm |
|
Overall width of machine |
2 500 mm |
|
Overall height of machine |
4 120 mm |
|
Total weights: |
|
|
Front axle |
14.25 t |
|
Rear axle |
23.75 t |
|
Total weight |
38.0 t |
|
Note: Weights included boom, concrete pump, full hydraulic oil, truck (with 100 l fuel and spare wheel, no pipes on the racks, no water in water tank) Note: Weights may vary depends of a truck type |
|
| Boom Specifications: | 5 stages | |
|
Maximum vertical reach |
46.0 m |
|
|
Maximum horizontal reach |
42.0 m |
|
|
Stages: |
Length |
Operating angle |
|
1st stage: |
9.6m |
-50 900 |
|
2nd stage: |
8.6 m |
00 to 1800 |
|
3rd stage |
8.6 m |
00 to 1800 |
|
4th stage: |
7.6 m |
00 to 1900 |
|
5th stage: |
7.5 m |
00 to 2250 |
|
Swing angle: |
3650 |
|
|
Concrete pipeline, dia |
125 mm |
|
|
End hose, ID /length |
100 mm/ 4.0 m |
|
| Concrete Pump Specifications | ||
|
|
Piston side |
Rod side |
|
Output capacity (m3/h) |
105 m3/h |
165 m3/h |
|
Delivery pressure (bar) |
108 bar |
63 bar |
|
Strokes per minute (at 2200 rpm of oil pump) |
20 |
32 |
|
Concrete cylinder, dia |
228.6 mm |
|
|
Differential cylinder, dia |
127 mm |
|
|
Rod, dia |
82 mm |
|
|
Length of stroke |
2100 mm |
|
|
Hydraulic pump |
2*A4VG 125 |
|
|
Relief valve setting |
350 bar |
|
|
Hopper capacity |
700 lit | |
|
Water tank |
500 lit | |
